Crane Observations at Lake Hornborgasjön, Sweden (1994–2024)

TidyTuesday 2025-10-01

r
ggplot2
ggbranding
lubridate
Author

gnoblet

Published

October 1, 2025

Dataset

# Get data
library(tidytuesdayR)
dat <- tt_load("2025-09-30")
dat <- dat$cranes

# Load other required libraries
library(ggplot2)
library(ggbranding) # to add personal branding to plots, NOT ON CRAN yet see github.com/gnoblet/ggbranding
library(dplyr) # for data manipulation
library(showtext) # for custom fonts
library(sysfonts) # for custom fonts
library(ggtext) # for rich text annotations
library(lubridate) # for date manipulation
library(viridis) # for color scales

Analysis

Data Preparation

# add a month and year column using lubridate
dat <- dat |>
  mutate(
    month = month(date),
    year = year(date),
    day = day(date),
    day_of_year = yday(date),
    day_month = paste0(sprintf("%02d", month), "-", sprintf("%02d", day)),
    day_month_label = paste0(month.abb[month], " ", day)
  )

# keep only spring months (Feb to May)
dat_spring <- dat |>
  filter(month %in% 2:5) |>
  mutate(
    # Create a sequential day within spring season for better x-axis
    spring_day = case_when(
      month == 2 ~ day,
      month == 3 ~ day + 29,
      month == 4 ~ day + 60,
      month == 5 ~ day + 90
    )
  )

# Earliest day of year for spring migration
# when did the earliest observation occur?
earliest_obs <- dat_spring |>
  arrange(spring_day) %>%
  slice(1)
# Prepare annotation text
earliest_obs_text <- paste0(
  "Earliest cranes observed\n in ",
  earliest_obs$year,
  " on ",
  earliest_obs$day_month_label
)

# Day with the highest number of cranes
max_obs <- dat_spring |>
  arrange(desc(observations)) |>
  slice(1)
max_obs_text <- paste0(
  scales::comma(max_obs$observations),
  " peak number of cranes\n",
  " observed on ",
  max_obs$day_month_label,
  " in ",
  max_obs$year
)
max_obs_day <- max_obs$spring_day

# Text for explaining what each tile is
# appear at the top left of the plot so min of year 2024
exp_obs <- dat_spring |>
  filter(year == 2024) |>
  arrange(spring_day) |>
  slice(1)
exp_obs_text <- "Each tile is the number of cranes observed\non a given day. Empty dark tiles mean that\nweather conditions were not suitable\nfor observation on that day."

# Subtitle text to pass to ggtext
title_text <- "Spring Crane Migration Occur Earlier"
subtitle_text <- "For more than 30 years (1994-2024), cranes stopping at the Lake Hornborgasjön ('Lake Hornborga') in Västergötland, Sweden have been counted from the Hornborgasjön field station in the spring and the fall as they pass by during their yearly migration."

Visualization

# Fonts
font_add_google("Roboto Condensed", "Roboto Condensed")
showtext_auto()
showtext_opts(dpi = 300)

# Create breaks for x-axis (every two weeks approximately)
spring_breaks <- c(46, 61, 75, 92)
spring_labels <- c(
  "Mar 15",
  "Apr 1",
  "Apr 15",
  "May 1"
)

# Spring migration tile plot with dark theme and ggplot2 4.0 features
p_spring <- ggplot() +
  # horizontal line every 5 years
  geom_segment(
    data = data.frame(
      y = seq(1995, 2024, by = 5),
      xmin = 31,
      xmax = 95
    ),
    aes(x = xmin, xend = xmax, y = y),
    color = "white",
    linewidth = 0.4
  ) +
  geom_text(
    data = data.frame(
      y = seq(1995, 2024, by = 5),
      x = 96,
      label = seq(1995, 2024, by = 5)
    ),
    aes(x = x, y = y, label = label),
    color = "white",
    size = 4.5,
    hjust = 0
  ) +
  geom_tile(
    data = dat_spring,
    aes(x = spring_day, y = year, fill = observations),
    linewidth = 0.1,
    colour = "white",
  ) +
  scale_fill_viridis_c(
    name = "# of Crane\nObservations",
    trans = "sqrt",
    labels = scales::comma_format(),
    option = "plasma",
    na.value = "#0a0a0aff"
  ) +
  scale_x_continuous(
    limits = c(19, 105),
    breaks = spring_breaks,
    labels = spring_labels,
    expand = c(0, 2)
  ) +
  scale_y_continuous(
    limits = c(1994, 2030),
    breaks = c(1994, 2024),
    expand = c(0, 1)
  ) +
  labs(
    title = title_text,
    subtitle = subtitle_text,
    x = NULL,
    y = NULL
  ) +
  # Add annotation for earliest 2007 data point
  annotate(
    "curve",
    x = 28,
    y = 2004,
    xend = 33,
    yend = 2007,
    curvature = -0.3,
    arrow = arrow(length = unit(0.01, "npc"), type = "closed"),
    color = "white",
    size = 0.5
  ) +
  annotate(
    "text",
    x = 22,
    y = 2002.5,
    label = earliest_obs_text,
    hjust = 0,
    vjust = 0.5,
    color = "white",
    size = 5,
    family = "Roboto Condensed"
  ) +
  # Add annotation for max observation
  annotate(
    "curve",
    x = 85,
    y = 2025,
    xend = max_obs_day,
    yend = max_obs$year,
    curvature = 0.2,
    arrow = arrow(length = unit(0.01, "npc"), type = "closed"),
    color = "white",
    size = 0.5
  ) +
  annotate(
    "text",
    x = 103,
    y = 2025.4,
    label = max_obs_text,
    hjust = 1,
    vjust = 0.5,
    color = "white",
    size = 5,
    family = "Roboto Condensed"
  ) +
  # Add annotation for explanation of tiles
  annotate(
    "text",
    x = 19,
    y = 2029,
    label = exp_obs_text,
    hjust = 0,
    vjust = 1,
    color = "white",
    size = 5,
    family = "Roboto Condensed"
  ) +
  # Using ggplot2 4.0 theme features
  theme_void(base_family = "Roboto Condensed") +
  theme(
    # Dark background theme using new ggplot2 4.0 approach
    plot.background = element_rect(fill = "#0a0a0a", colour = NA),
    panel.background = element_rect(fill = "#0a0a0a", colour = NA),

    # Title styling with white text
    plot.title = element_textbox_simple(
      size = 26,
      face = "bold",
      colour = "white",
      hjust = 0,
      margin = margin(t = 20, b = 10, l = 30, r = 30)
    ),
    plot.subtitle = element_textbox_simple(
      size = 18,
      colour = "white",
      hjust = 0,
      margin = margin(b = 30, l = 30, r = 30),
      width = unit(0.9, "npc")
    ),
    axis.text.x = element_text(
      colour = "white",
      size = 14,
      hjust = 1
    ),
    # Legend styling
    legend.text = element_text(colour = "white", size = 14),
    legend.title = element_text(colour = "white", size = 14, face = "bold", ),
    legend.position = "top",
    legend.key.height = unit(0.4, "cm"),
    legend.key.width = unit(3, "cm"),
    legend.margin = margin(t = 15, b = 20),

    # Using new margin system from ggplot2 4.0
    plot.margin = margin(30, 20, 30, 20)
  ) +
  # Add branded footer using ggbranding
  add_branding(
    github = "gnoblet",
    bluesky = "@gnoblet",
    icon_color = "white",
    text_color = "white",
    additional_text = "Data: TidyTuesday 29 Sept 2025",
    additional_text_color = "white",
    caption_margin = margin(t = 40, b = 10),
    line_spacing = 2L,
    icon_size = "14pt",
    text_size = "14pt",
    caption_halign = 0.5
  )

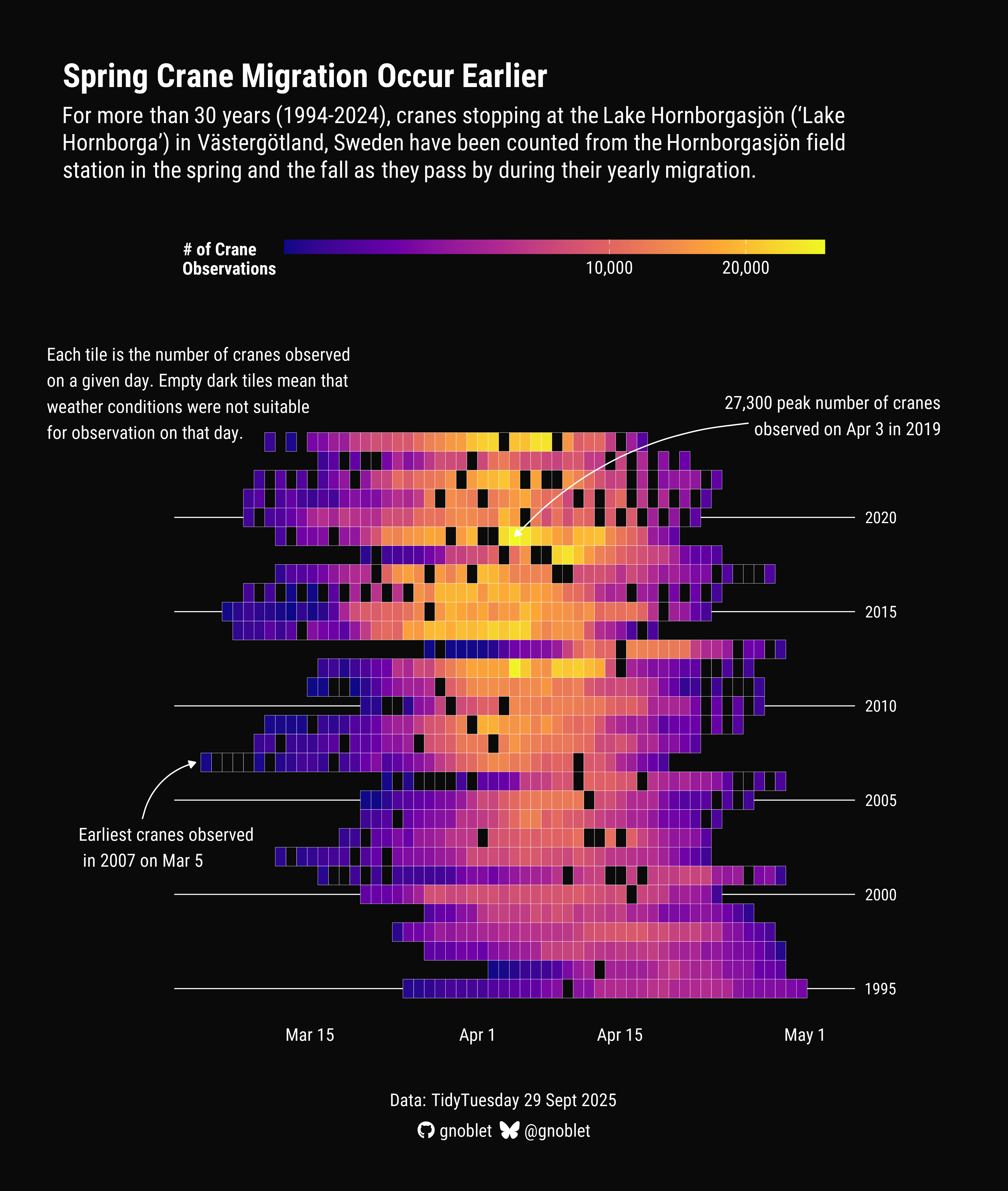

Save Plot

# Display and save the plot
ggsave(
  "week_39.png",
  p_spring,
  width = 11,
  height = 13,
  dpi = 300
)
