Day 08: Urban & Minimal map

A minimal map of Geneva’s urban fabric using the SITG topographic data. Bridging two days into one.

# Libraries
library(httr2)
library(sf)
library(dplyr)
library(ggplot2)
library(showtext)
library(sysfonts)
library(ggtext)
library(ggbranding)
library(patchwork)

# Disable s2 geometry
sf::sf_use_s2(FALSE)

# Get data with httr2
url <- "https://ge.ch/sitg/geodata/SITG/OPENDATA/SIPV_MN_CARTO_5-SHP.zip"
tmp_zip <- tempfile(fileext = ".zip")
req <- request(url) |>
  req_perform() |>
  resp_body_raw() |>
  writeBin(con = "sipv_carto.zip")

# Unzip
unzip(zipfile = "sipv_carto.zip", exdir = "sipv_carto")

# List all shapefiles
shp_files <- list.files(
  "sipv_carto",
  pattern = "\\.shp$",
  full.names = TRUE,
  recursive = TRUE
)[1]

# Read layer
urban_polygons <- st_read(shp_files, quiet = TRUE)

# Mutate to character the categorical variables
urban_polygons <- urban_polygons |>
  mutate(across(
    all_of(c("STATUT_OPN", "NAT_URB", "MESH_BARRI")),
    as.character
  ))

# Fonts
showtext_auto()
showtext_opts(dpi = 600)
font_add("lineal_thin", "../../fonts/Lineal/Lineal-Light.otf")
main_font <- "lineal_thin"

# Colors
col_title <- "grey90"
col_subtitle <- "grey80"
col_bg <- "#000000c9"

# Base theme for all maps
base_theme <-
  theme_void(base_family = main_font) +
  theme(
    plot.title = element_text(
      family = main_font,
      face = "bold",
      color = col_title,
      size = 18,
      hjust = 0.5,
      margin = margin(b = 0)
    ),
    plot.subtitle = element_text(
      family = main_font,
      color = col_subtitle,
      size = 16,
      hjust = 0.5,
      margin = margin(t = 5, b = 0)
    ),
    plot.background = element_rect(fill = col_bg, color = NA),
    legend.position = "none"
  )


# Map 1: Naturalness (NAT_URB)
p1 <- ggplot(urban_polygons) +
  geom_sf(
    aes(fill = factor(NAT_URB)),
    color = NA,
    size = 0
  ) +
  scale_fill_manual(
    values = c(
      "1" = "#FFECB3", # Light yellow - not natural
      "2" = "#FFD54F", # Yellow
      "3" = "#FFA726", # Orange
      "4" = "#FF7043", # Deep orange
      "5" = "#D84315" # Dark red-orange - very natural
    ),
    na.value = "white"
  ) +
  labs(
    title = "Naturalness Level",
    subtitle = "1 (Not Natural) · 5 (Natural)"
  ) +
  base_theme

# Map 2: Barriers (MESH_BARRI)
p2 <- ggplot(urban_polygons) +
  geom_sf(
    aes(fill = factor(MESH_BARRI)),
    color = NA,
    size = 0
  ) +
  scale_fill_manual(
    values = c(
      "0" = "#BBDEFB", # Light blue for no barrier
      "1" = "#1565C0" # Dark blue for barrier
    ),
    na.value = "white"
  ) +
  labs(
    title = "Urban Barriers",
    subtitle = "Barrier · No Barrier"
  ) +
  base_theme

# Map 3: Protection Status (STATUT_OPN)
p3 <- ggplot(urban_polygons) +
  geom_sf(
    aes(fill = STATUT_OPN),
    color = NA,
    size = 0
  ) +
  scale_fill_manual(
    values = c(
      "1" = "#2E7D32", # Dark green for protected
      "0" = "#C8E6C9" # Light green for not protected
    ),
    na.value = "white"
  ) +
  labs(
    title = "Nature Protection Status",
    subtitle = "None · Protected"
  ) +
  base_theme


# Branding
branding <- branding(
  github = "gnoblet",
  bluesky = "gnoblet.bsky.social",
  website = "guillaume-noblet.com",
  additional_text = "Data: SITG | Days 08 + 11: Urban + Minimal | Font: Lineal by Frank Adebiaye distributed by velvetyne.fr.",
  line_spacing = 2L,
  icon_color = col_subtitle,
  text_color = col_subtitle,
  additional_text_color = col_subtitle,
  text_size = "13pt",
  icon_size = "13pt",
  text_family = main_font
)

# Create a branding plot for the bottom band
p_branding <- ggplot() +
  geom_textbox(
    aes(label = branding),
    x = 0.5,
    y = 0.5,
    hjust = 0.5,
    vjust = 0.5,
    family = main_font,
    fill = NA,
    box.color = NA,
    width = unit(0.95, "npc")
  ) +
  theme_void() +
  theme(
    plot.background = element_rect(fill = col_bg, color = NA),
    panel.background = element_rect(fill = col_bg, color = NA)
  )

# Define layout: three maps on top, branding band at bottom
layout <- "
AAABBBCCC
AAABBBCCC
AAABBBCCC
AAABBBCCC
AAABBBCCC
AAABBBCCC
DDDDDDDDD
"

# Combine all four plots with the layout
p_final <- p1 +
  p2 +
  p3 +
  p_branding +
  plot_layout(design = layout) +
  plot_annotation(
    title = "Geneva Non-Urban Fabric",
    theme = theme(
      plot.title = element_text(
        family = main_font,
        face = "bold",
        size = 26,
        hjust = 0.5,
        color = col_title,
        margin = margin(t = 10, b = 20)
      ),
      plot.background = element_rect(fill = col_bg, color = NA),
      panel.background = element_rect(fill = col_bg, color = NA)
    )
  )

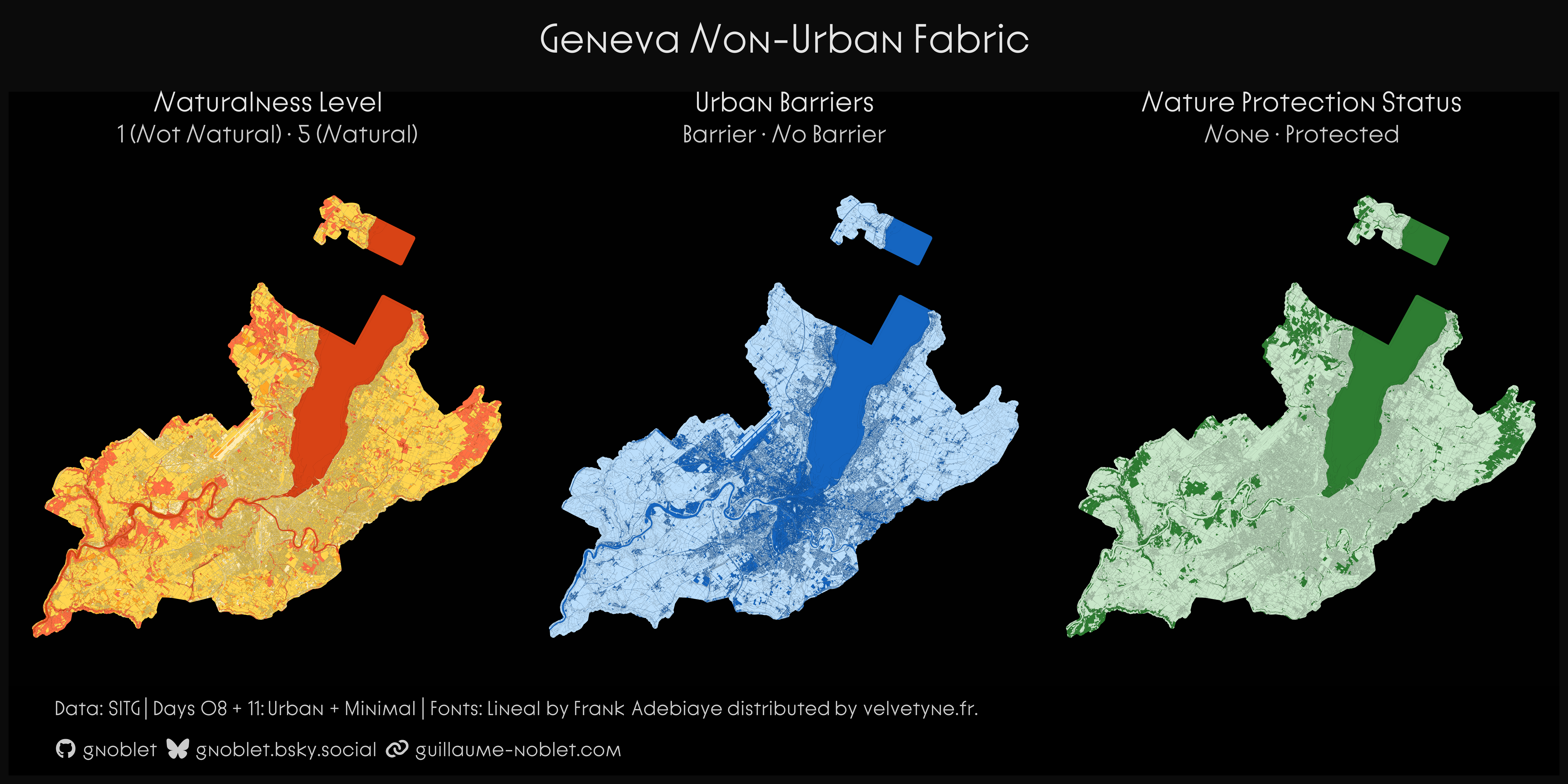

# Save combined map
ggsave(
  "day_08.png",
  p_final,
  width = 14,
  height = 7,
  dpi = 600
)
